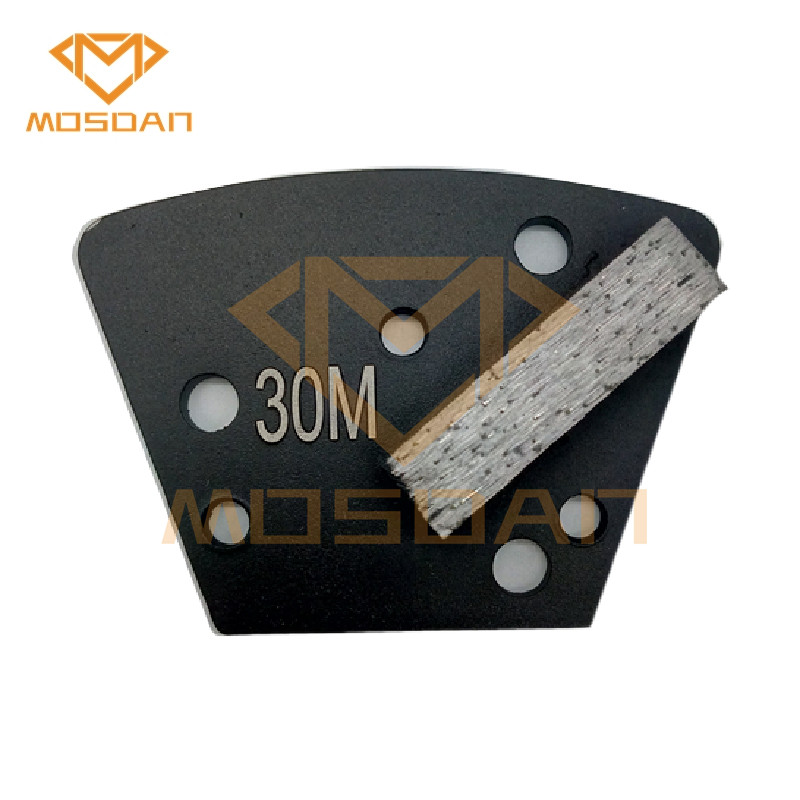

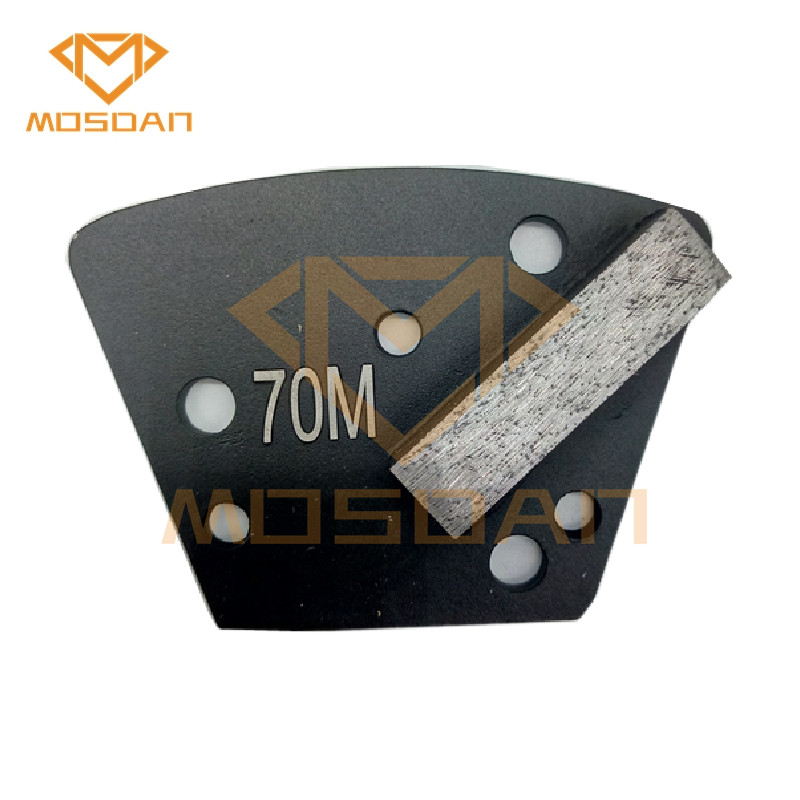

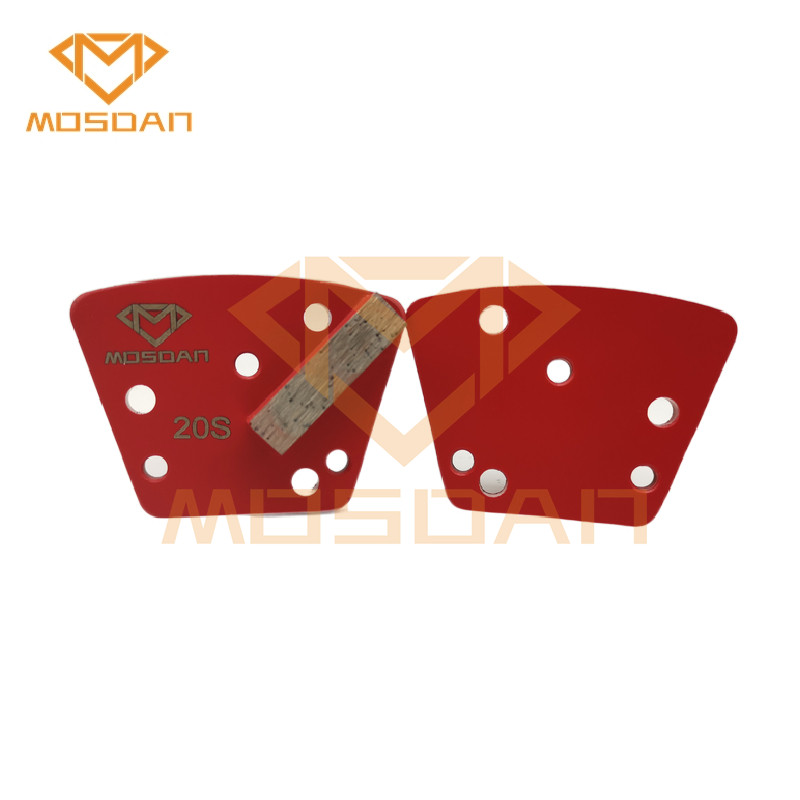

Trapezoid Single Rectangle Bar Diamond Grinding Head Tools

Trapezoid Grinding Plate with Single Bar Segment is designed to provide effcient and precise Concrete, Terrazzo , Stone Floor grinding and polishing. It can be suitable for Diamatic and Blastrac machine and super aggressive and durable life work performance.

  • Brand :

    Mosdan
  • Item NO. :

    DM-05
  • Grit :

    6, 16, 20, 30, 70, 120, 150, 200, 220, 300, 400#
  • Bond :

    Soft, Medium, Hard, Extra soft or hard, Super soft or hard
  • MOQ :

    9pcs
  • Payment :

    Paypal, T/T
  • Product Origin :

    Xiamen, China
  • Color :

    Pink, Green, Red, Black, Blue, Yellow, Purple
  • Lead Time :

    7-10 days

Trapezoid Single Rectangle Bar Diamond Grinding Head Tools



Diamatic Trapezoid Diamond Grinding Shoe is wide suitable for concrete floor grinding, floor preparation, coatings removal and concrete polishing. Also can be made single, double, triple , even more different shapes segments numbers on the trapezoid grinding matrix. It can be fit on Diamatic and  Blastrac floor grinding systems.





1. Mosdan Metal Bond Selection



Mosdan Mosh PSI Metal Bond Selection



-Extremely Super Soft Bond: Ideal for Extremely Super Hard Concrete floor



-Super Soft Bond: Ideal for Super Hard Concrete floor or high speed concrete grinding



-Extra Soft Bond: Ideal for Extra Hard Concrete floor



-Soft Bond: Ideal for Hard Concrete floor



-Medium Bond: Ideal for Medium-Soft to Medium Concrete floor



-Hard Bond: Ideal for Soft Concrete floor for long lifetime



-Extra Hard Bond: Ideal for Extra Soft Concrete floor



-Super Hard Bond: Ideal for Super Soft Concrete floor







2. Product Specification



Product Name  Trapezoid Single Rectangle Bar Diamond Grinding Head Tools
Model NO. DM-05
Brand  Mosdan
Grit  6#,16#,18/20#, 25#, 30/40#,50/60#, 70#, 80/100#, 120/150#, 200/220#,300#, 400#
Bond  Extremely Super Soft, Super Soft, Extra Soft, Soft, Medium, Har, Extra Hard, Super Hard
Material  Diamonds and Metal Powder Combination
Segment NO. Single Bar
Segment Size 10mm, 12mm and 15mm thick
Colors Orange, Pink, Green, Red, Medium, Blue, Yellow, Purple or as customers' request
MOQ 9pcs
Usage Wet or dry use for concrete, terrazzo, mable, granite etc.
Application  Suitable for Diamatic and Blastrac Floor Grinding System
Package  Carton box for each piece or as customer's request
Lead time  7-10 days upon receipt of payment for regular orders
Payment Method  T/T, Paypal
Shipping  By sea, by air or by International express, like DHL, UPS, FedEx etc
Certificate  ISO9001, ISO2000, SGS product quality control
Main Market  North America, Australia, European market



3. Features

-Fast removes stock to greatly reduce your tools and save labor cost.

-Effective in the process of concrete floor grinding and polishing

-Beautiful Package and Short Delivery.

-OEM and ODM are available .



Mosdan offer metal bond diamond tools in wide variety of premium quality bonds and grits

Grit: 6#, 16#, 18/20# diamond grinding plate are usually the first step of metal bond grinding for removal overlay and old rough surface. The coarse diamond particles make you deeply cut and very powerful removal and can significantly open the floor and expose the new substrate of concrete, so you can easily move to the next floor prep and resurfacing. These grits are also very ideal for thinner coating removal, like epoxy, urethane, arcylic etc .

Diamatic Diamond Tools

Grit: 30#, 40# are very common used for concrete floor grinding. It produces even and obvious scratches pattern and quickly open the old concrete floor surface.

Diamatic Grinding Shoe

Grit: 50#, 60#, 70#, 80#  are further grinding and will produce medium scraches on the concrete floor surface.

Diamond Tools for Diamatic

Grit: 100#, 120#, 150#  metal diamond grinding disc are usually the last grinding step for concrete floors finest preparation .



4. Manufacturing Process

Mosdan Metal Bond Diamond Grinding Shoe manufacturing process contains:

3D Diamond Powder mixer, Assebly Mold, Suppression of the cutting tools, Welding segment on the grinding matrix, Spray Paint, Laser Marking , Package.

Mosdan Metal Bond Diamond Grinding Shoe Manufacturing process



5. Packages

Mosdan Diamond Grinding Shoe always packed 9pcs, 12pcs or 18pcs in one box, then boxes packed in the standard exported cartons



6. Payment and Shipment

We support Paypal and T/T (Bank Transfer)

Regular orders, we need about 7-10 days for preparation and production. Normally all the orders not exceed two weeks.

Most likely by Express, we will choose DHL, FedEx, UPS etc, it will take about 5 or 6 days from Xiamen, China to your warehouse .

If bulk orders, we also choose by sea and by air.



7. After-sale Service

Please send us the details resports as feedback if you find Metal bond diamond grinding shoe goods are not in good performance.

We will analize that the possible reasons and try to find a way to solve the problem. If the problem is due to the quality of Mosdan Metal Bond Diamond Grinding Tools product itself, we will make the compensation according to your actual loss and send you new replacement , even some payment refound, but not including the shipping cost.
