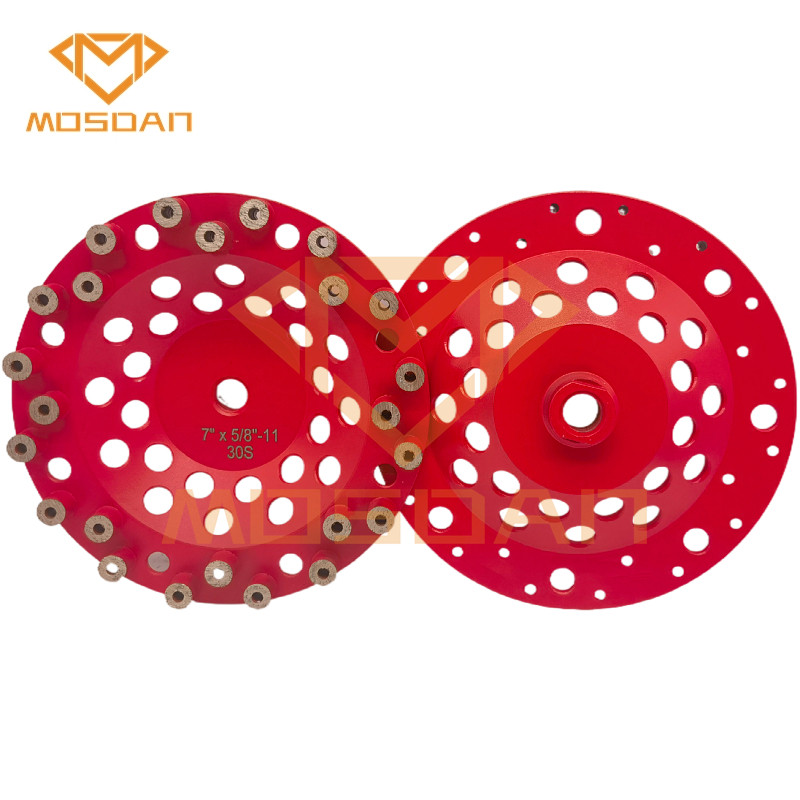

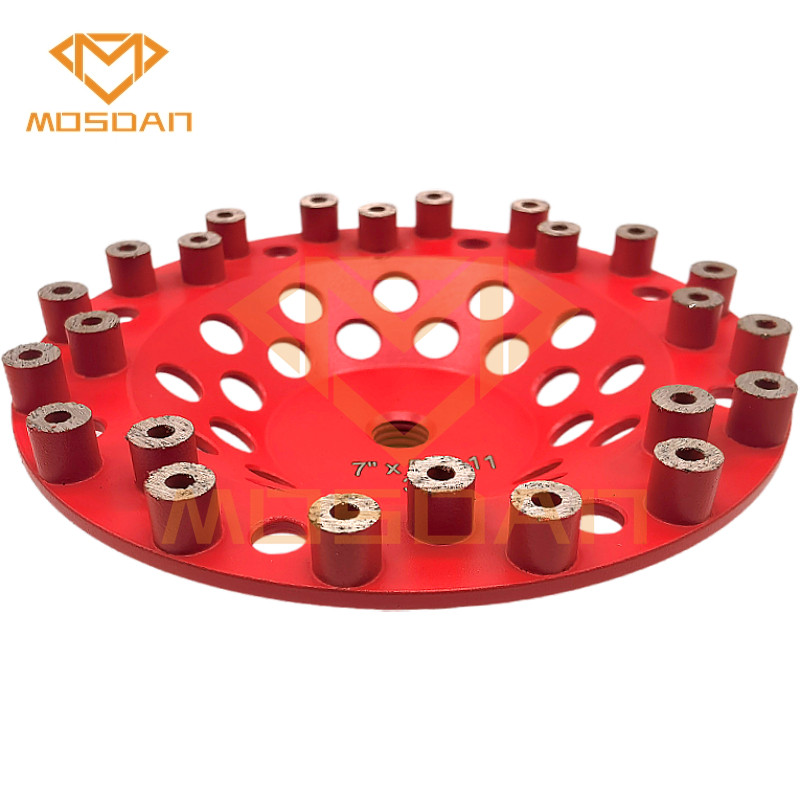

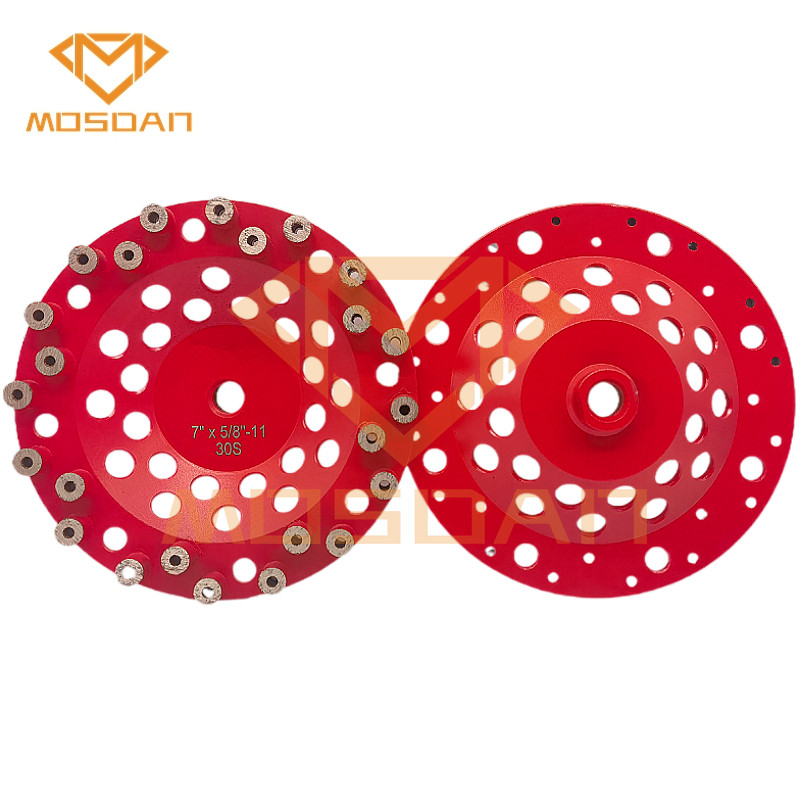

7'' Tube Grizzly Cup Wheel

180mm Tube Grizzly Cluster Concrete Cup Grinding Wheel

Cluster Tube Grizzly Cup Grinding Wheels are designed to provide the operator with fast production rate, super aggressive and long life. The segment is slanted at an angle away from the cup wheel core. Ring Button shaped segments pierce ligh coatings and minimizes guming up of segments.

  • Brand :

    Mosdan
  • Item NO. :

    CW-28
  • Grit :

    6, 16, 20, 30, 70, 120, 150, 200, 220, 300, 400#
  • Bond :

    Soft, Medium, Hard, Extra soft or hard, Super soft or hard
  • MOQ :

    5pcs
  • Payment :

    Paypal, T/T
  • Material :

    Diamond combination and Metal base
  • Product Origin :

    Xiamen, China
  • Color :

    Customized made
  • Lead Time :

    7-10 days after payment
  • Diameter :

    7''/180mm
  • Arbor :

    22.23, M14, 5/8''-11

180mm Tube Grizzly Cluster Concrete Cup Grinding Wheel



Cluster Tube Grizzly Cup Grinding Wheels are designed to provide the operator with fast production rate, super aggressive and long life. The segment is slanted at an angle away from the cup wheel core. Ring Button shaped segments pierce ligh coatings and minimizes guming up of segments.





1. Product Specification



Product Name  180mm Tube Grizzly Cluster Concrete Cup Grinding Wheel
Model NO. CW-28
Brand  Mosdan
Grit  6#,16#,18/20#, 25#, 30/40#,50/60#, 70#, 80/100#, 120/150#, 200/220#,300#, 400#
Bond Extremely Soft, Super Soft, Extra Sot, Soft, Medium, Hard, Extra Hard, Super Hard
Material  Diamonds and Metal Powder Combination
Diameter  7''/180mm
Segment NO. 24 Ring Buttons
MOQ 5pcs
Arbor Hole 22.23, M14, 5/8''-11
Usage Wet or dry use for edge grinding concrete, terrazzo, mable, granite etc.
Application  Suitable for hand grinder , like Metabo, Makita etc
Package  Carton box for each piece or as customer's request
Lead time  7-10 days upon receipt of payment for regular orders
Payment Method  T/T, Paypal
Shipping  By sea, by air or by International express, like DHL, UPS, FedEx etc
Certificate  ISO9001, ISO2000, SGS product quality control
Main Market  North America, Australia, European market



2. Features

-Fast cutting stripping wheel for thick glue, cement based adhesives.

-Rapid remove of high spots in concrete and other masonry materials.

-Very coarse diamond for more aggressive work performance.

-OEM and ODM are available .



Mosdan offer metal bond diamond cup wheels in wide variety of premium quality bonds and grits.

Grit: 6#, 16#, 18/20#  Cup Wheels are usually the first step of metal bond grinding for removal overlay and old rough surface. The coarse diamond particles make you deeply cut and very powerful removal and can significantly open the floor and expose the new substrate of concrete, so you can easily move to the next floor prep and resurfacing. These grits are also very ideal for thinner coating removal, like epoxy, urethane, arcylic etc .



Grit: 30#, 40#  always Initial cut diamond grinding wheel, ideal for grinding and polishing concrete floors around edges and also into tighter spaces. Great cut for salt and pepper to full exposure finish on polished concrete floors.

Ring Button Cup Wheels

Grit: 60#, 80# Diamond Grinding Wheels are intermediate Grinding Cut Wheels, further grinding and will produce medium scraches on the concrete floor. Perfect for grinding and polishing concrete edge and into tighter space on polished concrete floor.



Grit: 100#, 120# Grinding wheels are usually the last grinding step for concrete floors and stone finest preparation . Finishing cut pior to resins, also very great for use in grouting around edges of polished concrete floors.



3. Packages

Mosdan Diamond Grinding Wheels always are packed 1pcs in one box, then boxes packed in the standard exported cartons



4. Payment and Shipment

We support Paypal and T/T (Bank Transfer)

Regular orders, we need about 7-10 days for preparation and production. Normally all the orders not exceed two weeks.

Most likely by Express, we will choose DHL, FedEx, UPS etc, it will take about 5 or 6 days from Xiamen, China to your warehouse .

If bulk orders, we also choose by sea and by air.



5. After-sale Service

Please send us the details resports as feedback if you find Metal bond diamond cup wheels goods are not in good performance.

We will analize that the possible reasons and try to find a way to solve the problem. If the problem is due to the quality of Mosdan Metal Bond Diamond Grinding Tools product itself, we will make the compensation according to your actual loss and send you new replacement , even some payment refound, but not including the shipping cost.
